الوصف

1 – Nominal pressure                                    : Double cylinder 2000KN*2

2 – Stroke                                                       : Double cylinder 300 mm*2

3 – Maximum opening                                   : 960 mm

4 – Working table height from ground           : 900mm

5 – Motor                                                        : 11kW / 380 volts /60Hz.

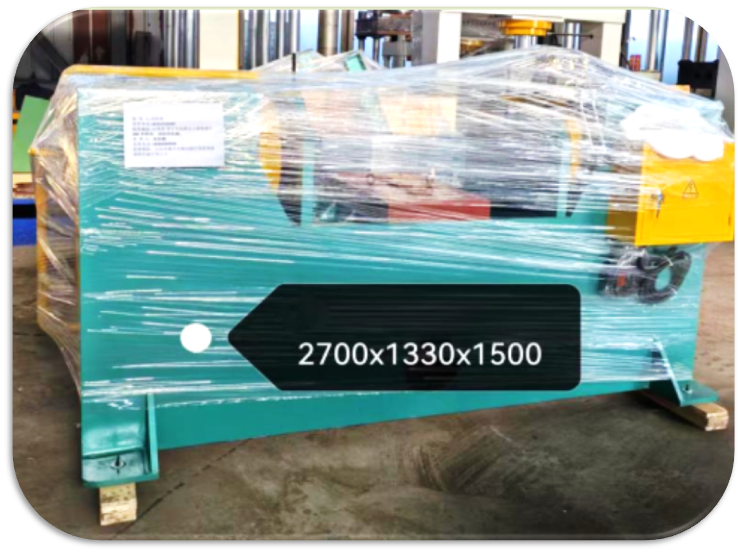

6 – Oil pump                                                   : 40ML /R

7 – The overall size of the machine is about : L 2500 x W 800 x H 1400 mm

8 – Hydraulic pump                                        : 600 x 600 x 1500 mm

9 – Mechanical weight                                   : 5000 Kg.

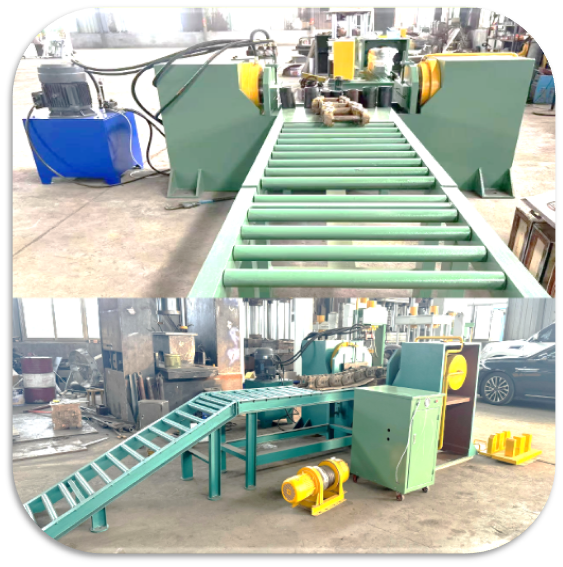

FRAME CONVEYOR

– The track of the drag chain is 12 meter each piece 2meter total 6 pieces x 2 meter.

DISASSEMBLING & ASSEMBLING MOLD

– 3 Sets of chain pin disassembling and assembling molds (Track pitch Optional).

ROLLING LINK MACHINE (OPTIONAL PARTS: INCLUDED IN OFFER).

Long 1800mm x Width 880 mm X Height 1300 mm

FRAME CONVEYOR – TOTAL 6 PCS.

– 12 meter (CONVEYOR STAND) +1 triangle (Track ramp).

Each conveyor size Length 2000 mm x Width 900 mm x Height 1600 mm.

Each conveyor weight 260Kg. *2Pcs. = 520Kgs.

ASSEMBLING / DISASSEMBLING MOLD (PLEASE GIVE US EXACTLY MACHINE TYPE).

• Fit for 154, 171, 175, 190, 203 Pitch.
• Fit for 216, 228, 240 Pitch.
• Fit for 260, 280, 317 Pitch.
