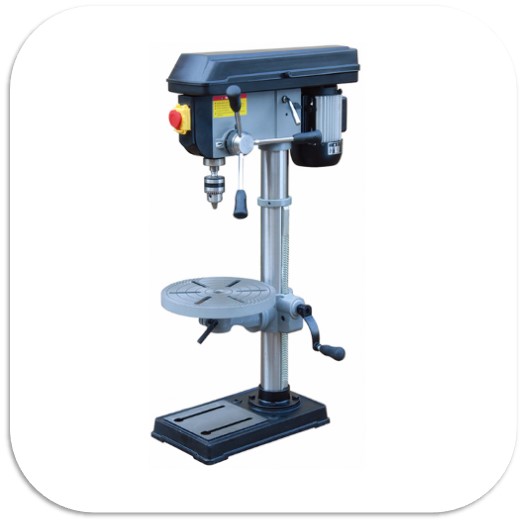

BENCH DRILL PRESS  Model ZJQ4116

Model ZJQ4116

Made in PRC.

Brand DUMA

Keyed safety switch prevents accidental starting.

Diameter 290mm cast iron worktable, height adjustable and bevels up to 45 degree left & right scaled steel fence helps align, guide and brace workpiece, stop block for repetitive drilling works.

Motor power                                       : 375W

Chuck                                                  : 16 mm

Spindle travel                                      : 82 mm

Spindle tapper                                     : MT2

Speed change                                                 : 16

Speed 60Hz.                                        : 260 – 3410 rpm

Swing                                                  : 324mm/13”

Working table                                      : Dia. 290 mm

Base                                                    : 420×250 mm

Column                                               : Dia. 72 mm

Total height                                         : 980 mm

Weight                                                 : 41 kg.
